Motorová brzda Super Flow SF-901

Motorová brzda Super Flow SF-901



Technické parametry měření:

Tachometer Magnetic pickup on 60-tooth gear Range  0–22,000 RPM (1/min) x 1

Torque Temperature-compensated strain gauge bridge Range 0–1350 Nm x 0.1 ± 0.2% fs Calibration arm included. Other ranges available as options Compensated temp. range -15° to 65° C

Fuel flow Filter, pump, accumulator, pressure regulator, gauge and vibration-isolated radial-flow turbine meter. Range 100 g/s x 0.1 ± 0.5% fs Pressure drop 3 psi ∆ P @ 600 lb/hr max. Specific gravity range 0.40–1.40

Air flow Choose one of the following turbines: 4" (10 cm) diameter turbine 4–150 cfm (2–70 l/s), 3–100 HP (2–75 kW) 6.5" (16.5 cm) diameter turbine .......... 10–800 cfm (5–380 l/s), 5–600 HP (3.75–450 kW) 9" (23 cm) diameter turbine ... 20–1,200 cfm (10–566 l/s), 30–1,000 HP (22–750 kW)

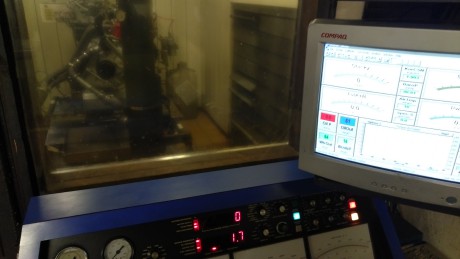

Náhledy fotografií ze složky SF-901
